Shipping Services for All Sized Tunnel Boring Machine Equipment Nationwide

Professional TBM Transport for Tunnel Contractors, Transit Authorities, and Infrastructure Projects

Tunnel Boring Machines (TBMs) are massive, highly specialized machines designed to excavate tunnels through rock, soil, or mixed ground conditions with minimal surface disruption. Used for subway systems, highway tunnels, water conveyance, and utility installations, these machines feature rotating cutterheads with disc cutters, massive thrust systems, segment erection equipment, and complex slurry or earth pressure balance systems. Weighing from 100 tons for micro-TBMs to over 2,000 tons for large-diameter machines, TBMs require component disassembly and specialized transport between manufacturing facilities, job sites, and storage yards.

Don\’t Ship Your TBM Without Us!

Ship A Car, Inc. provides professional TBM transport services nationwide. SAC works with specialized heavy-haul carriers equipped with multi-axle trailers, hydraulic modular trailers, and the rigging expertise required for tunnel equipment. We understand the unique requirements of TBM shipping – proper cutterhead protection, thrust frame securing, and the complex logistics of moving equipment designed specifically for underground operation. No up-front deposit required. Call (866) 821-4555 for a free quote or request an estimate using our online calculator.

Here's Why SAC is the Smart Choice for TBM Shipping Services

Specialized Heavy-Haul for TBM Components

Tunnel Boring Machines are among the most complex heavy equipment to transport, requiring disassembly into major components: cutterhead, shield body, thrust frame, backup systems, and conveyor equipment. Individual components can weigh 50 to 500+ tons each. SAC matches every TBM shipment to carriers equipped with multi-axle trailers, hydraulic modular transporters, and specialized rigging equipment designed for oversized tunnel machinery.

Your SAC coordinator assesses your TBM’s manufacturer (Robbins, Herrenknecht, The Robbins Company, Caterpillar TBM Division), diameter, weight distribution across components, and any special handling requirements before developing the transport plan. The right equipment arrives at your facility or job site – whether that is a TBM manufacturing plant, tunnel portal, or equipment storage yard.

Cutterhead and Disc Cutter Protection

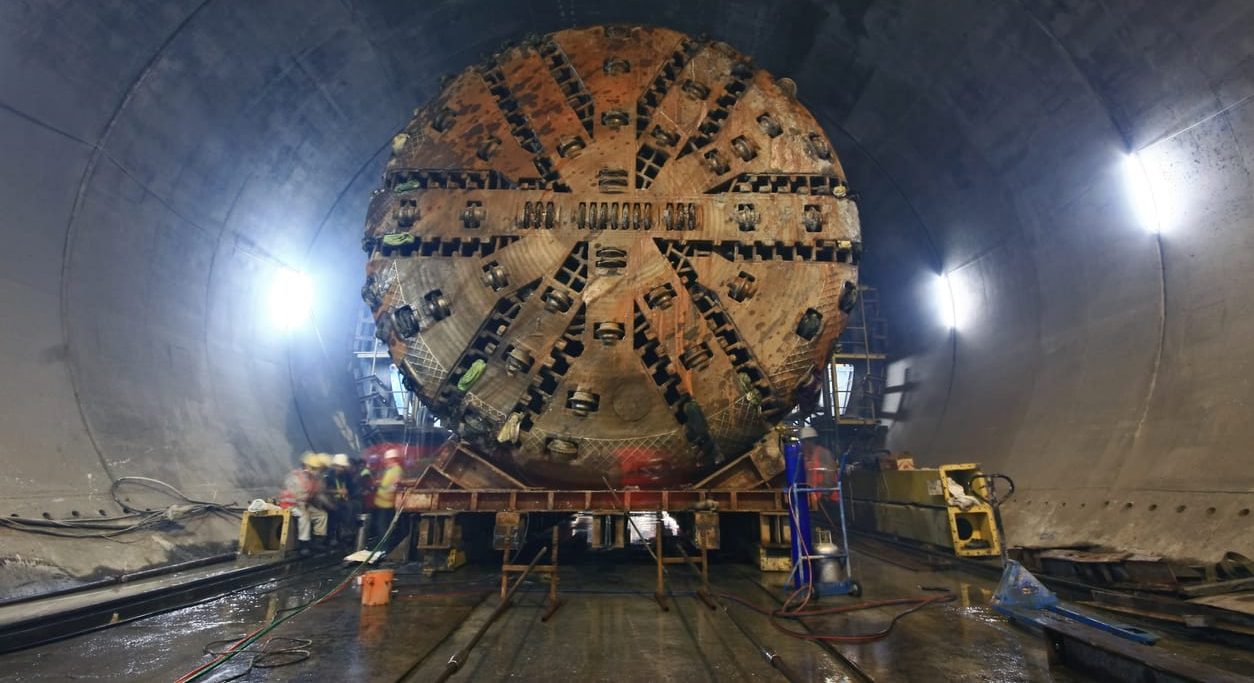

The TBM cutterhead is a massive steel structure with expensive disc cutters and tooling designed to fracture rock. Weighing 20 to 200+ tons depending on machine diameter, the cutterhead must be properly supported, secured, and protected during transport. Disc cutters must be shielded from damage, and the cutterhead structure must be supported to prevent deformation.

Improper cutterhead support can result in damaged disc cutters, structural deformation, or bearing misalignment costing hundreds of thousands in repairs and project delays. SAC coordinates with carriers experienced in tunnel equipment transport. Your SAC coordinator communicates the specific TBM model and manufacturer transport guidelines to ensure proper handling from pickup through delivery.

Serving Tunnel Contractors and Transit Authorities

SAC works with tunnel contractors moving TBMs between project sites, transit authorities managing subway construction equipment, water utility districts with tunnel projects, highway departments with mountain tunnel construction, and TBM manufacturers delivering new machines. We understand the critical timelines of tunnel projects, the high cost of TBM downtime, and the coordination required when TBM delivery must align with tunnel launch windows.

For tunnel contractors with multiple projects, SAC offers flexible scheduling that aligns with your project calendar. For transit authorities with strict construction windows, SAC understands the critical timing. For TBM manufacturers with delivery commitments, SAC provides white-glove handling for new equipment. Whether you are moving one micro-TBM or a fleet of large-diameter machines, SAC scales to your needs.

Tunnel Boring Machine Shipping - Frequently Asked Questions

What types of TBMs does SAC ship?

What trailer type is used for TBM transport?

Do TBMs require oversize permits for transport?

How is a TBM loaded for transport?

Can TBMs be driven on highways?

How much does it cost to ship a TBM?

What information does SAC need to quote TBM shipping?

Tunnel Boring Machine Shipping - Frequently Asked Questions

TBM Shipping Pricing: What Affects Your Transport Costs

Tunnel Boring Machine transport pricing reflects the complexity of these specialized machines. From compact micro-TBMs to massive large-diameter machines, costs depend on machine size, component count, and specialized requirements. Here are the five key factors that determine your TBM shipping quote:

1. TBM Diameter and Total Weight

2. Number and Weight of Components

3. Specialized Trailer Requirements

4. Permit and Escort Requirements

5. Loading/Unloading Complexity

TBM components require specialized loading equipment and rigging. Large cranes or gantry systems at manufacturing plants. Tunnel portal cranes or jacking systems at job sites. Each load and unload requires heavy-lift expertise. Remote tunnel sites may have limited access requiring additional planning. Loading complexity significantly affects overall project cost.

Sample Pricing Estimates for TBM Transport:

Route	TBM Size	Component Count	Estimated Cost
Regional (200 miles)	Micro-TBM (6-ft diameter)	3-4 loads	$15,000 – $30,000
Cross-country	Mid-size (20-ft diameter)	8-12 loads	$100,000 – $200,000
Cross-country	Large (35-ft diameter)	15-20+ loads	$250,000 – $450,000

These estimates reflect typical TBM transport scenarios. Actual costs vary based on specific machine configuration, site access, route requirements, and market conditions. Large-diameter TBMs and complex job site access can significantly increase costs. Call (866) 821-4555 for a detailed quote specific to your TBM and project requirements.

TBM Shipping Preparation Checklist

Preparing a Tunnel Boring Machine for transport requires specialized knowledge and coordination with the TBM manufacturer or contractor. Given the complexity and value of these machines, proper preparation is critical. Follow this checklist to ensure safe component separation, transport, and protection.

1. Coordinate with TBM Manufacturer or Specialist

Before transport, work with the TBM manufacturer, contractor, or specialized TBM service company to develop a proper disassembly and transport plan. These machines have specific procedures for component separation. Improper disassembly can cause significant damage or alignment issues affecting future operation.

TBM manufacturers provide documentation for transport preparation including: proper lifting points, component separation sequences, protective measures, and reassembly requirements. Follow these guidelines precisely. Your SAC coordinator can work directly with the manufacturer to ensure proper handling.

2. Clean and Inspect All Components

Before disassembly, thoroughly clean soil, rock, slurry, and debris from all TBM components. Cutterheads must be free of rock and tooling debris. Shield sections must be cleaned of muck and slurry. Backup systems and conveyors require cleaning. Many states prohibit transport of equipment carrying contaminated soil or slurry.

Document the condition of all components with detailed photographs before disassembly. Inspect disc cutters, tooling, bearings, and structural elements. Note any wear or damage. This baseline documentation is essential for condition verification at delivery and reassembly.

3. Protect the Cutterhead and Disc Cutters

The cutterhead is the most critical and expensive component. Ensure all disc cutters are properly secured or removed for separate transport if recommended. Protect cutter mounts and structural elements. Use appropriate support cradles that maintain the cutterhead’s structural integrity during transport.

Disc cutters are expensive consumables ($500-2,000+ each) and vulnerable to damage. Some TBMs have 50+ disc cutters. Protect these investments during transport. Consult manufacturer guidelines for cutterhead support and protection requirements.

4. Secure Hydraulic and Electrical Systems

Before component separation, secure all hydraulic systems. Cap hydraulic lines to prevent contamination and leaks. Protect hydraulic cylinders and motors. Secure electrical cabinets, control systems, and trailing cables. Document all electrical and hydraulic connections before disconnection.

TBM hydraulic systems operate at high pressures with expensive components. Contamination during transport can cause system failures costing hundreds of thousands to repair. Electrical systems must be protected from moisture and damage. Follow manufacturer guidelines for system preservation.

5. Prepare Shield Sections for Transport

Shield sections (front shield, gripper shield, tail shield) require special preparation. Secure all internal components including thrust cylinders, articulation systems, and segment erectors. Protect sensitive components. Ensure proper lifting points are identified and marked.

Shield sections are massive steel structures that can warp if improperly supported. Use manufacturer-approved support methods during transport. Internal components must be secured against vibration and shifting. Document the condition of seals, bearings, and wear surfaces.

6. Secure Backup and Auxiliary Equipment

TBM backup systems include conveyors, segment delivery systems, power units, and support equipment. Each must be prepared for transport. Secure conveyor belts, rollers, and drive systems. Protect segment erection equipment. Secure power generation and electrical equipment.

Backup equipment represents significant value and must be protected. Document all auxiliary equipment included in the transport. Ensure proper lifting and securing for each piece. Some backup equipment may ship on standard trailers, while heavy components need specialized handling.

7. Plan Reassembly and Alignment Requirements

TBM transport is only half the project – reassembly at the destination requires equal attention. Document the exact position and orientation of all components before disassembly. Mark alignment points. Preserve critical measurements. Plan for reassembly sequence and requirements.

TBMs require precise alignment during reassembly for proper operation. The transport and reassembly process must preserve alignment capabilities. Coordinate with the destination site for proper reassembly facilities and equipment. Your SAC coordinator can help plan the complete transport and reassembly logistics.

Nationwide TBM Shipping: Every Tunnel Project, Every Transit System, Every Underground Operation

Ship A Car, Inc. provides Tunnel Boring Machine transport services in all 50 states, covering every major tunnel project, transit system expansion, utility tunnel, and underground infrastructure project in the country. From subway extensions in major cities to highway tunnels through mountain ranges, from water conveyance tunnels to utility corridors, SAC has the carrier relationships and specialized heavy-haul expertise to move your TBMs wherever they need to go.

Our specialized heavy-haul network includes operators with the multi-axle trailers, hydraulic modular equipment, and tunnel machinery expertise necessary for TBM transport. Whether you are moving a micro-TBM for utility work, relocating a mid-size machine between projects, or managing the complex logistics of a large-diameter TBM relocation, SAC has the coverage and capability to execute your shipment.

Secure Payment Options for TBM Shipping

Ship A Car, Inc. accepts wire transfers, ACH bank transfers, and business checks for TBM transport orders. Due to the high value and project complexity, payment terms are customized for each shipment. For tunnel contractors and transit authorities with regular equipment moves, SAC offers account setup with milestone-based payment structures. All financial transactions use secure banking protocols.

The rate in your SAC TBM quote is comprehensive. Given the multi-load nature of TBM transport, quotes include detailed breakdowns for each component load, including specialized equipment, permits, escorts, and rigging. No hidden fees. SAC provides the transparency project managers need for accurate budgeting and cost control. Large TBM projects may require progress payments aligned with load deliveries.

Specialized Equipment for Tunnel Boring Machine Transport

SAC matches every TBM transport project to carriers with the right specialized equipment. Multi-axle trailers (7-13 axles) for heavy shield sections. RGN and heavy-duty flatbeds for cutterheads and components. Hydraulic modular transporters for confined areas. Self-propelled modular transporters (SPMTs) for precise positioning. Each TBM component is matched to appropriate equipment based on weight, dimensions, and site conditions.

Loading and securing TBM components requires specialized expertise – proper lifting point identification, custom support cradles for cutterheads, careful load distribution on trailers, and protection for precision components. SAC’s vetted specialized carriers understand tunnel equipment transport requirements. Your coordinator ensures all equipment and handling methods are appropriate for your specific TBM components.

Dedicated Coordinator for Every TBM Transport Project

Every SAC TBM transport is assigned to a dedicated coordinator who manages the complex multi-load project: carrier selection for each component, permit acquisition for multiple oversize loads, pickup scheduling across components, transit tracking, and delivery coordination. Your coordinator is your direct point of contact throughout the project – experienced, accessible, and accountable for the complete transport operation.

For tunnel contractors, transit authorities, and TBM manufacturers that move equipment regularly, SAC establishes ongoing relationships with consistent coordinator assignments. Your coordinator builds familiarity with your equipment types, standard project sites, and operational requirements over time. Whether you manage one TBM project per year or multiple machines across ongoing operations, SAC provides the coordination structure these complex moves require. Call (866) 821-4555 to discuss your TBM transport needs.

DISCLAIMER NOTE: *All pricing estimates are accurate at time of publication and subject to change based on market conditions, fuel prices, and permit availability. Large-diameter TBMs and complex job site access conditions are priced individually based on specific requirements. Multi-component TBM projects require detailed assessment and custom quoting.
