Shipping Services for All Sized Motor Grader Equipment Nationwide

Professional Motor Grader Transport for Road Builders, Earthwork Contractors, and Municipal Fleets

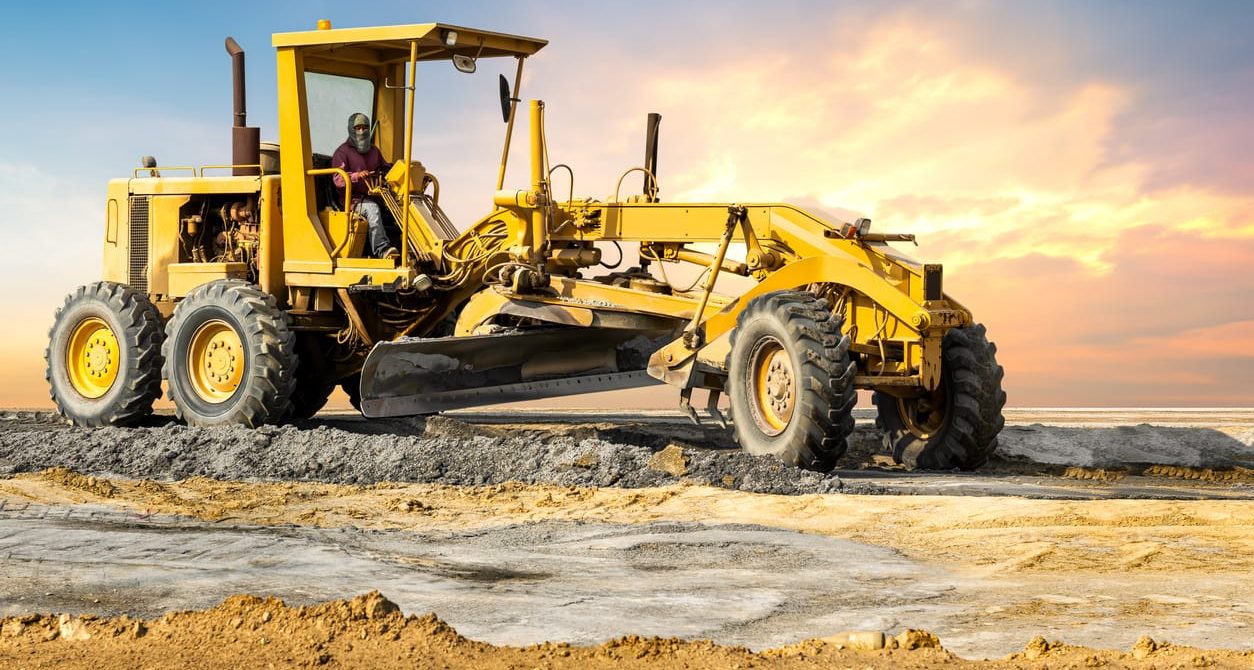

Motor graders are precision earthmoving machines designed for fine grading, road leveling, and surface preparation. With their distinctive long frame, articulating joint, and centrally mounted moldboard blade, these machines range from compact utility graders for small projects to massive 16-foot blade highway machines for major road construction. Transporting a motor grader presents unique challenges – their extended overall length, articulating steering joint, moldboard positioning requirements, and often a rear-mounted ripper attachment create a complex transport envelope that requires specialized RGN or lowboy trailers, proper joint securing, and carriers experienced in handling these uniquely configured machines.

Ship A Car, Inc. provides professional motor grader transport services nationwide. SAC works with a network of licensed, insured heavy-haul carriers equipped with removable gooseneck (RGN) and lowboy trailers designed specifically for the long, low-clearance profile of motor graders. We understand the unique requirements of grader shipping – proper moldboard positioning, articulation joint securing, and ripper attachment handling. No up-front deposit required. Call (866) 821-4555 for a free quote or request an estimate using our online calculator.

Here's Why SAC is the Smart Choice for Motor Grader Shipping Services

RGN and Lowboy Equipment for Long, Low Graders

Motor graders are among the longest and lowest machines in the construction equipment category. Their extended wheelbase and low ground clearance make them unsuitable for standard flatbed transport. SAC matches every grader shipment to carriers equipped with RGN (removable gooseneck) trailers or lowboy configurations that accommodate the machine’s length and provide appropriate deck height for loading. From compact 12-foot blade graders to massive 16-foot and larger highway machines, SAC has the carrier capacity to handle them all.

Your SAC coordinator assesses your grader’s blade width, overall length, weight, moldboard type, and any rear ripper configuration before dispatching a carrier. The right trailer with the appropriate deck length, ramp angle for low ground clearance, and weight rating arrives at your pickup location – whether that is a highway construction site, a county road department yard, or an equipment dealership.

Moldboard, Circle, and Ripper Securing

The motor grader’s moldboard – the large curved blade mounted on a circle assembly in the center of the machine – must be properly positioned and secured for transport. The moldboard should be centered, lowered to minimize height, and locked in position. The circle gear and side-shift mechanism must be secured. For graders with rear-mounted ripper attachments used for breaking up compacted material, the ripper must be raised and pinned in the transport position.

Improper moldboard positioning can create excessive width or height, triggering permit requirements or clearance hazards. An unsecured ripper that settles during transport creates ground clearance issues. Your SAC coordinator communicates the specific grader model, moldboard configuration, and any attachment details to the carrier before dispatch, ensuring proper handling from pickup through delivery.

Serving Road Construction and Municipal Operations

SAC works with highway contractors moving graders between road projects, county and municipal road departments maintaining fleets, earthwork contractors positioning machines for grading operations, and equipment dealers delivering units to buyers nationwide. We understand the seasonal nature of road construction, the maintenance schedules of municipal fleets, and the coordination required when grader delivery must align with project mobilization and crew availability.

For municipal fleets with regular equipment rotation needs, SAC offers flexible scheduling that aligns with your maintenance calendar. For road contractors with project-based requirements, SAC coordinates transport between jobsites on your timeline. For equipment dealers with regular new and used grader deliveries, SAC offers account setup with volume pricing. Whether you are moving one utility grader to a county project or a fleet of highway machines, SAC scales to your needs.

Motor Grader Shipping - Frequently Asked Questions

What types of motor graders does SAC ship?

What trailer type is used for motor grader transport?

Do motor graders require oversize permits for transport?

How is a motor grader loaded onto a carrier?

Can SAC ship a motor grader with a ripper attachment?

How much does it cost to ship a motor grader?

What information does SAC need to quote motor grader shipping?

Motor Grader Shipping - Frequently Asked Questions

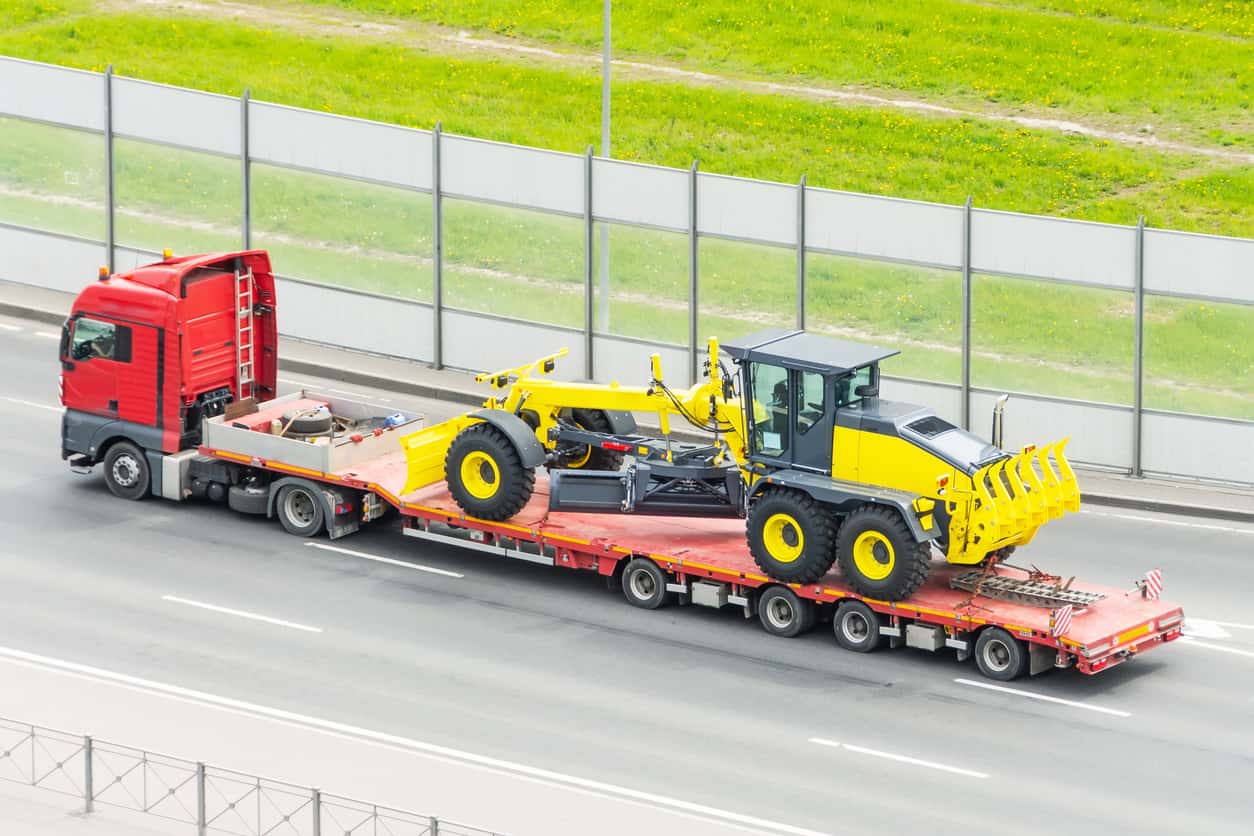

Motor Grader Shipping Pricing: What Affects Your Transport Costs

Motor grader transport pricing reflects the specialized nature of these long, low machines. From compact utility graders to massive highway-class units, costs depend on size, length, and route requirements. Here are the five key factors that determine your motor grader shipping quote:

1. Grader Size and Blade Width

2. Distance and Route

3. Trailer and Loading Requirements

4. Permit Requirements for Length

5. Jobsite Access and Loading Conditions

Operational motor graders that can be driven onto trailers require less handling cost than non-operational units. Road construction sites and municipal yards typically have adequate loading areas, though active projects may have space constraints. Non-operational graders requiring crane or heavy-lift loading carry additional costs. Communicating site conditions accurately at booking ensures the quote reflects actual handling requirements.

Sample Pricing Estimates for Motor Grader Transport:

Route	Grader Type	Equipment Type	Estimated Cost
Indianapolis, IN to Columbus, OH	12-ft utility grader (operational)	RGN trailer	$1,200 – $1,800
Dallas, TX to Denver, CO	14-ft road grader	RGN lowboy	$2,800 – $4,000
Atlanta, GA to Seattle, WA	16-ft highway grader	Heavy RGN	$4,500 – $6,500

These estimates reflect standard operational graders with proper moldboard positioning on regular routes. Non-operational units requiring specialized loading, graders with unusual attachments creating oversize dimensions, and remote jobsite access conditions will vary. Call (866) 821-4555 for a personalized quote on your specific motor grader and route.

Motor Grader Shipping Preparation Checklist

Preparing a motor grader for transport requires attention to the moldboard positioning, articulation joint securing, ripper attachment, and overall machine condition. Follow this checklist to ensure safe loading, protect your equipment, and prevent delays on pickup day.

1. Confirm the Grader is in Transport-Ready Condition

Before pickup, confirm that your motor grader is operational and can be safely driven onto the trailer. Check that the engine starts reliably, the transmission engages properly for movement, steering hydraulics function, and the grader responds to controls. Test the moldboard lift and circle rotation to ensure they operate properly for positioning.

If the grader is not operational – due to engine failure, hydraulic problems, or transmission issues – disclose this to your SAC coordinator at booking. Non-operational motor graders require specialized loading equipment such as a crane or heavy wrecker with adequate lift capacity, which must be pre-arranged. Do not wait until the driver arrives to report operational issues.

2. Center and Lower the Moldboard

Before transport, position the moldboard (blade) in the center of the machine, rotated to the straight-ahead position using the circle gear. Lower the moldboard to minimize transport height – it should be close to the ground but not dragging. Lock or pin the moldboard in position if your grader is equipped with transport locks.

An off-center moldboard creates uneven weight distribution and excessive width. A raised moldboard significantly increases overall height, potentially exceeding 14 feet and triggering permit requirements. Side-shift the moldboard to center if needed, and ensure the blade is straight. Your SAC coordinator will confirm the transport dimensions based on your moldboard positioning at booking.

3. Secure the Articulation Joint in Straight Position

For motor graders with articulated steering – which includes most modern machines – position the front and rear frames in a perfectly straight line before transport. The articulation joint must not be turned left or right. Secure the joint using any factory transport locks, or use chains to prevent articulation during transit.

An unsecured articulation joint that shifts during transport creates dynamic weight transfer, stress on hydraulic lines, and trailer stability issues. The grader’s overall length changes as the joint articulates, affecting legal length compliance. Confirm with your SAC coordinator that the carrier understands articulated equipment transport requirements. This is a critical safety step for motor grader shipping.

4. Raise and Secure the Ripper Attachment

If your motor grader is equipped with a rear-mounted scarifier or ripper attachment, raise it to the fully retracted transport position and secure it with transport pins or locks. A ripper left in the lowered working position extends several feet behind the machine, increasing transport length and creating ground clearance hazards.

Hydraulic rippers should be fully raised and the hydraulic system checked for leaks that could allow settling during transit. Mechanical rippers must be pinned in the raised position. Some larger graders have multi-shank rippers that significantly affect the transport envelope. Confirm the ripper is properly secured before the carrier arrives.

5. Clean the Machine and Remove Debris

Before transport, thoroughly clean dirt, mud, and debris from the grader’s moldboard, circle gear, undercarriage, and wheels or tires. Heavy mud buildup adds unnecessary weight and can fall off during transit. Many states have regulations regarding equipment carrying soil across state lines.

Pay special attention to the moldboard cutting edge and circle gear teeth where material accumulates. For graders coming directly from muddy grading projects, allow time for proper cleaning before pickup. A clean machine allows the carrier driver to complete an accurate condition inspection and prevents weight-related issues at highway scales.

6. Secure Loose Components and Check Tires

Before transport, remove or secure any loose items from the grader cab and exterior. Check that all tool boxes, engine compartment covers, and access panels are latched. For graders with cab doors, ensure they are closed and secured. Check all tires for proper inflation and any visible damage.

For graders with GPS or automated grade control systems, protect or secure any external antennas or sensors. Document any accessories or special equipment that remain on the machine for the Bill of Lading. The grader should be in clean, transport-ready condition when the carrier arrives.

7. Measure and Document Grader Dimensions

Before booking, measure your motor grader’s overall length from front tire to rear tire (or front implement to rear attachment), width at the moldboard, and height with the blade lowered. Accurate measurements are essential for correct trailer matching and permit assessment. Operating weight is critical for determining appropriate trailer capacity.

Provide these dimensions to your SAC coordinator at booking: overall length in straight position, width at widest point (usually moldboard), height with blade down, and operating weight. Inaccurate dimensions that result in the wrong carrier being dispatched can cause loading failures and costly rescheduling. Length is often the critical dimension for motor graders.

Nationwide Motor Grader Shipping: Every Road Project, Every County, Every Highway

Ship A Car, Inc. provides motor grader transport services in all 50 states, covering every major highway corridor, county road system, municipal street department, and road construction zone in the country. From interstate highway projects to rural county roads, from city street maintenance to commercial site development, SAC has the carrier relationships and route experience to move your graders wherever they need to go.

Our heavy-haul carrier network includes regional specialists with the RGN and lowboy equipment necessary for motor grader transport. Whether you are moving a utility grader to a county project, relocating a 14-foot machine to a highway contract, or transporting a fleet of graders for seasonal road work, SAC has the coverage and expertise to execute your shipment reliably.

Secure and Convenient Payment Options for Motor Grader Shipping

Ship A Car, Inc. accepts all major credit cards, ACH bank transfers, and select business payment platforms for motor grader transport orders. For construction companies, county road departments, municipal fleets, and equipment dealers with regular transport needs, SAC offers account setup with consolidated invoicing. Our payment system uses industry-standard encryption. No up-front deposit is required on any order.

The rate in your SAC quote is the rate you pay. No fuel surcharges added at pickup. No processing fees after booking. No unexpected charges at delivery. SAC provides a clear written cost breakdown before you confirm, including all known permit fees identified at booking. For fleet managers and equipment procurement teams where cost accuracy matters, SAC’s transparent pricing supports reliable budget planning.

RGN and Lowboy Equipment for Motor Grader Transport

SAC matches every motor grader transport order to a carrier with the right RGN or lowboy trailer equipment for the specific machine. RGN trailers with removable goosenecks for ground-level loading of compact and mid-size graders. Heavy-duty lowboy configurations for larger highway-class machines. The right deck length, ramp angle, and weight capacity are confirmed at booking before dispatch.

Loading and securing motor graders requires specialized technique – proper moldboard positioning verification, articulation joint securing, frame tie-downs that avoid damage to hydraulic systems, and protection for the circle gear and moldboard components. SAC’s vetted heavy-haul carriers understand these requirements. Your coordinator communicates machine-specific handling needs to the carrier before loading so your grader is handled correctly from the first contact.

Dedicated Coordinator for Every Motor Grader Transport Order

Every SAC motor grader transport order is assigned to a dedicated coordinator who manages carrier selection, permit acquisition, pickup scheduling, transit tracking, and delivery coordination. Your coordinator is your direct point of contact throughout the move – reachable by phone or email. For equipment moves tied to road construction timelines or municipal fleet rotations, your coordinator manages the logistics proactively.

For highway contractors, county road departments, municipal fleets, and equipment dealers that ship regularly, SAC establishes dedicated account relationships with consistent coordinator assignments. Your coordinator builds familiarity with your grader types, standard routes, site access requirements, and operational preferences over time. Whether you ship one utility grader per season or manage a large fleet of highway machines, SAC has the account management structure to support your needs. Call (866) 821-4555 to get started.

DISCLAIMER NOTE: *All pricing estimates are accurate at time of publication and subject to change based on market conditions, fuel prices, and permit availability. Large highway-class graders and unusually long configurations requiring specialized permits are priced individually based on specific dimensions and route requirements.
